[AWS EKS] 웹 애플리케이션 구축하기 - 5.CI/CD구성

[CI/CD 구성도]

[GitHub Action workflow]

1.Github 리포지토리 생성

Public 으로 front-app-repo  라는 이름으로 Application repository 생성

2.프론트엔드 Github 연동 및 push

cd ~/environment/amazon-eks-frontend
rm -rf .git
export GITHUB_USERNAME=${your-github-username}

cd ~/environment/amazon-eks-frontend
git init
git add .
git commit -m "first commit"
git branch -M main
git remote add origin https://github.com/$GITHUB_USERNAME/front-app-repo.git
git push -u origin main.

git push 확인 완료 !

3. IAM 생성 및 정책연동

aws iam create-user --user-name github-action

• github-action이라는 이름으로 iam생성

cat <<EOF> ecr-policy.json
{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "AllowPush",
            "Effect": "Allow",
            "Action": [
                "ecr:GetDownloadUrlForLayer",
                "ecr:BatchGetImage",
                "ecr:BatchCheckLayerAvailability",
                "ecr:PutImage",
                "ecr:InitiateLayerUpload",
                "ecr:UploadLayerPart",
                "ecr:CompleteLayerUpload"
            ],
            "Resource": "arn:aws:ecr:${AWS_REGION}:${ACCOUNT_ID}:repository/dhkim-frontend"
        },
        {
            "Sid": "GetAuthorizationToken",
            "Effect": "Allow",
            "Action": [
                "ecr:GetAuthorizationToken"
            ],
            "Resource": "*"
        }
    ]
}
EOF

• ECR리포지토리(dhkim-frontend)에 접근할 수 있도록 IAM Policy작성

aws iam create-policy --policy-name ecr-policy --policy-document file://ecr-policy.json
aws iam attach-user-policy --user-name github-action --policy-arn arn:aws:iam::${ACCOUNT_ID}:policy/ecr-policy

• IAM Policy(ecr-policy) 생성 및 IAM(github-action)에 생성한 정책 연결

aws iam create-access-key --user-name github-action

• IAM USER Credential생성 (시크릿키,액세스키는 별도저장)

4.GitHub Personal token 설정

상기에 이미지 처럼 설정하고 토큰값 복사하기

5.GitHub Secret 설정

• ACTION_TOKEN, AWS_ACCESS_KEY_ID, AWS_SECRET_ACCESS_KEY 리포지토리 생성
• 각 리포지토리안에 내용을 리포지토리이름에 맞게 설정

6.GitHubAction을 위한 build 스크립트 생성 및 push

cd ~/environment/amazon-eks-frontend
mkdir -p ./.github/workflows

cd ~/environment/amazon-eks-frontend/.github/workflows
cat > build.yaml <<EOF

name: Build Front

on:
  push:
    branches: [ main ]

jobs:
  build:
    runs-on: ubuntu-latest
    steps:
      - name: Checkout source code
        uses: actions/checkout@v2

      - name: Check Node v
        run: node -v

      - name: Build front
        run: |
          npm install
          npm run build

      - name: Configure AWS credentials
        uses: aws-actions/configure-aws-credentials@v1
        with:
          aws-access-key-id: \${{ secrets.AWS_ACCESS_KEY_ID }}
          aws-secret-access-key: \${{ secrets.AWS_SECRET_ACCESS_KEY }}
          aws-region: $AWS_REGION

      - name: Login to Amazon ECR
        id: login-ecr
        uses: aws-actions/amazon-ecr-login@v1

      - name: Get image tag(verion)
        id: image
        run: |
          VERSION=\$(echo \${{ github.sha }} | cut -c1-8)
          echo VERSION=\$VERSION
          echo "::set-output name=version::\$VERSION"

      - name: Build, tag, and push image to Amazon ECR
        id: image-info
        env:
          ECR_REGISTRY: \${{ steps.login-ecr.outputs.registry }}
          ECR_REPOSITORY: demo-frontend
          IMAGE_TAG: \${{ steps.image.outputs.version }}
        run: |
          echo "::set-output name=ecr_repository::\$ECR_REPOSITORY"
          echo "::set-output name=image_tag::\$IMAGE_TAG"
          docker build -t \$ECR_REGISTRY/\$ECR_REPOSITORY:\$IMAGE_TAG .
          docker push \$ECR_REGISTRY/\$ECR_REPOSITORY:\$IMAGE_TAG

EOF

cd ~/environment/amazon-eks-frontend
git add .
git commit -m "Add github action build script"
git push origin main

7.GitHubAction 확인

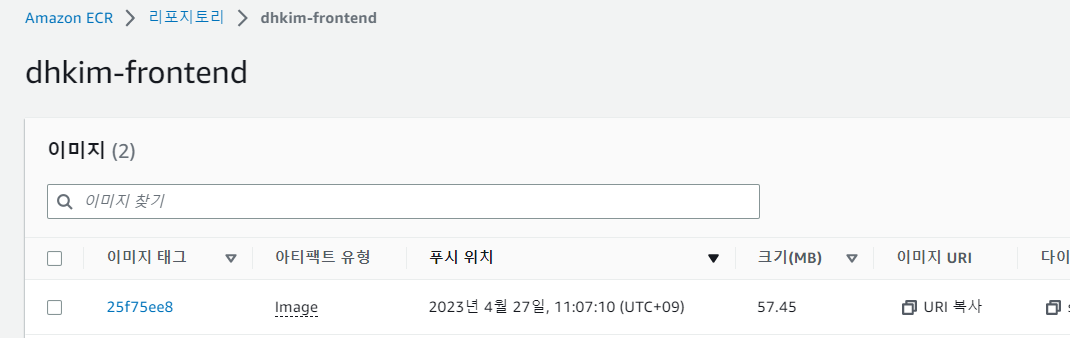

• GitHubAction으로 인해서 생성된 이미지가 ECR에 PUSH됨

※GitHubAction 오류발생 시 참조!!

최신버전의 nodejs(v18.15.0)에서 npm install 시 오류가 발생함 ▶ 잘되는 버전으로 다운그레이드 필요 !

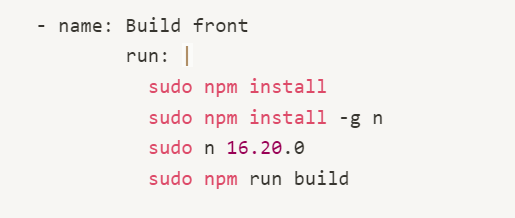

Build Front를 수정하여 nodejs버전을 16.20.0으로 설치하여 진행하여 해결 ~

[Kustomize]

0.Kustomize란?

쿠버네티스 리소스(yaml파일)를 변경하지 않고 필드를 재정의하여 새로운 쿠버네티스 리소스를 생성하는 도구

1.kustomize 디렉토리 생성 및 yaml파일 이동

cd ~/environment
mkdir -p ./k8s-manifest-repo/base
mkdir -p ./k8s-manifest-repo/overlays/dev
cd ~/environment/manifests
cp *.yaml ../k8s-manifest-repo/base
cd ../k8s-manifest-repo/base
ls -rlt

실습하면서 작성했던 yaml파일 모두 이동완료 ! !

2.kustomize를 통해 관리/변경 할 kubernets manifest 대상 정의

cd ~/environment/k8s-manifest-repo/base
cat <<EOF> kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
  - frontend-deployment.yaml
  - frontend-service.yaml
EOF

3.frontend-deployment.yaml 정의

cd ~/environment/k8s-manifest-repo/overlays/dev
cat <<EOF> front-deployment-patch.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: demo-frontend
  namespace: default
  labels:
    env: dev
spec:
  selector:
    matchLabels:
      app: demo-frontend
  template:
    metadata:
      labels:
        app: demo-frontend
EOF

4.frontend-service.yaml 정의

cd ~/environment/k8s-manifest-repo/overlays/dev
cat <<EOF> front-service-patch.yaml
apiVersion: v1
kind: Service
metadata:
  name: demo-frontend
  annotations:
    alb.ingress.kubernetes.io/healthcheck-path: "/"
  labels:
    env: dev
spec:
  selector:
    app: demo-frontend
EOF

5.kustomization.yaml 정의

cd ~/environment/k8s-manifest-repo/overlays/dev
cat <<EOF> kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
images:
- name: ${ACCOUNT_ID}.dkr.ecr.${AWS_REGION}.amazonaws.com/dhkim-frontend
  newName: ${ACCOUNT_ID}.dkr.ecr.${AWS_REGION}.amazonaws.com/dhkim-frontend
  newTag: abcdefg
resources:
- ../../base
patchesStrategicMerge:
- front-deployment-patch.yaml
- front-service-patch.yaml
EOF

6.kubernetes menifest 용 github repo 생성 및 커밋

cd ~/environment/k8s-manifest-repo/
git init
git add .
git commit -m "first commit"
git branch -M main
git remote add origin https://github.com/$GITHUB_USERNAME/k8s-manifest-repo.git
git push -u origin main

[ArgoCD]

1.ArgoCD 설치 및 설정

kubectl create namespace argocd
kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/stable/manifests/install.yaml

# Argocd cli 설치(선택사항)
cd ~/environment
VERSION=$(curl --silent "https://api.github.com/repos/argoproj/argo-cd/releases/latest" | grep '"tag_name"' | sed -E 's/.*"([^"]+)".*/\1/')

sudo curl --silent --location -o /usr/local/bin/argocd https://github.com/argoproj/argo-cd/releases/download/$VERSION/argocd-linux-amd64

sudo chmod +x /usr/local/bin/argocd

• eks클러스터에 argocd 네임스페이스 생성 및 설치

2.ArgoCD와 ELB연동

kubectl patch svc argocd-server -n argocd -p '{"spec": {"type": "LoadBalancer"}}'
export ARGOCD_SERVER=`kubectl get svc argocd-server -n argocd -o json | jq --raw-output .status.loadBalancer.ingress[0].hostname`
echo $ARGOCD_SERVER
ARGO_PWD=`kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d`
echo $ARGO_PWD

• URL : $ARGOCD_SERVER
• username: admin
• password: $ARGO_PWD

3.ArgoCD설정

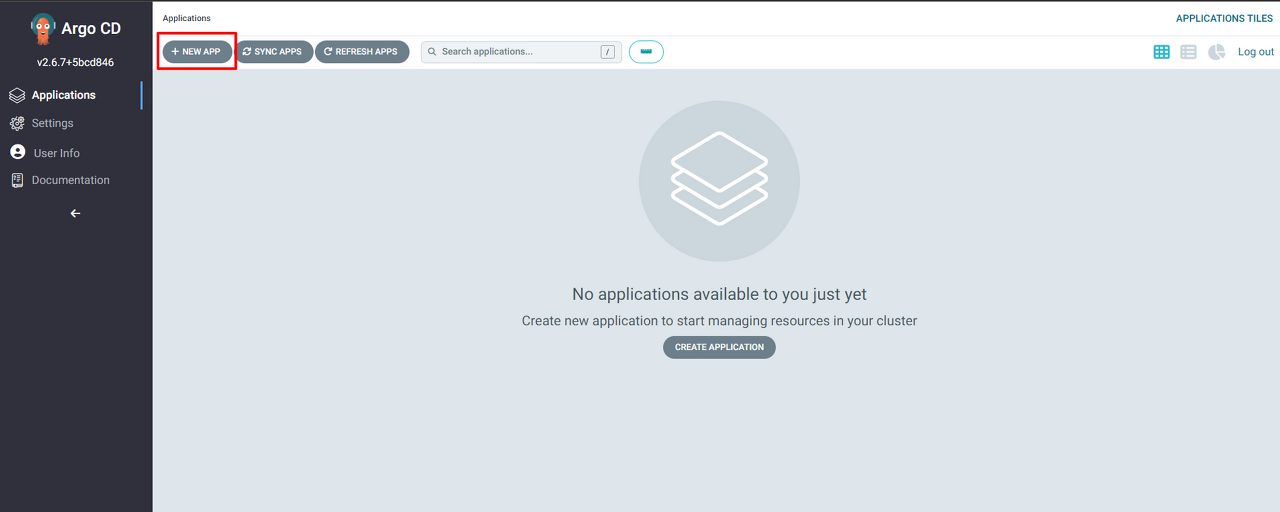

NEWAPP 클릭

이름은 하고싶은대로~

레파지토리 주소는 kustomize이 설정된 깃주소로 설정

• 상기에 이미지대로 설정 후 CREATE

4.Kustomize 빌드

cd ~/environment/amazon-eks-frontend/.github/workflows
cat <<EOF>> build.yaml

      - name: Setup Kustomize
        uses: imranismail/setup-kustomize@v1

      - name: Checkout kustomize repository
        uses: actions/checkout@v2
        with:
          repository: $GITHUB_USERNAME/k8s-manifest-repo
          ref: main
          token: \${{ secrets.ACTION_TOKEN }}
          path: k8s-manifest-repo

      - name: Update Kubernetes resources
        run: |
          echo \${{ steps.login-ecr.outputs.registry }}
          echo \${{ steps.image-info.outputs.ecr_repository }}
          echo \${{ steps.image-info.outputs.image_tag }}
          cd k8s-manifest-repo/overlays/dev/
          kustomize edit set image \${{ steps.login-ecr.outputs.registry}}/\${{ steps.image-info.outputs.ecr_repository }}=\${{ steps.login-ecr.outputs.registry}}/\${{ steps.image-info.outputs.ecr_repository }}:\${{ steps.image-info.outputs.image_tag }}
          cat kustomization.yaml

      - name: Commit files
        run: |
          cd k8s-manifest-repo
          git config --global user.email "github-actions@github.com"
          git config --global user.name "github-actions"
          git commit -am "Update image tag"
          git push -u origin main

EOF

cd ~/environment/amazon-eks-frontend
git add .
git commit -m "Add kustomize image edit"
git push -u origin main

githubaction 정상 확인 ~

4.ArgoCD확인

• Applications > dhkimeks-cd-pipeline 으로 이동 하여 확인 해보면 CURRENT SYNC STATUS의 값이 Out of Synced임
• git repository 가 변경되면 자동으로 sync 작업이 수행 하도록 하려면 Auto-Sync 를 활성화 필요 이를 위해 APP DETAILS 로 이동 하여 ENABLE AUTO-SYNC 버튼을 눌러 활성화

• pod 를 클릭하여 정상 배포 확인
• k8s-manifest-repo의 commit 이 발생할때 마다 ArgoCD가 이를 eks 클러스터에 자동 배포

[CI/CD 파이프라인 구성 확인]

1.프론트엔드 App.js 변경

title이름변경 완

• amazon-eks-frontend/src/App.js 변경 후 커밋

cd ~/environment/amazon-eks-frontend
git add .
git commit -m "Add new blog version"
git push -u origin main

2.파이프라인 동작확인

• 소스 commit/push -> githubAction -> AWS ECR -> ArgoCD 순서대로 동작 확인
• 파이프라인 동작확인 완료
